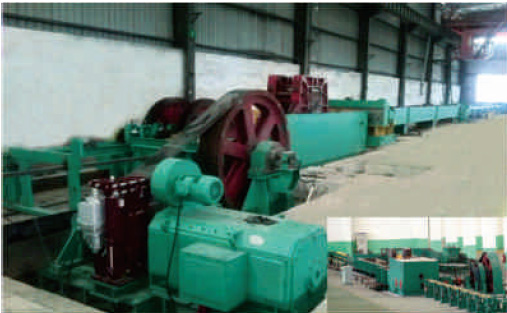

Tube Cold Rolling Machine Model LG-250_Tube Cold Rolling Machine_Products_Jiangsu Yuanji Machinery Equipment Technology Co.

LG-250-H冷轧管机

Technical Data of Tube Cold Rolling Machine Model LG-250-H

No.	Description		Unit	Tube Cold Rolling Machine Model
No.	Description		Unit	LG-250-H
1	Hollow size	0.D.	mm	Φ190~285
		W.T.	mm	6~28
		Length	m	3~6
2	Tube size	0.D.	mm	Φ170~270
		W.T.	mm	4~25
		Length	m	≤20
3	Max.elongation ratio of rolling			Depending on the material
4	Max. nominal rolling force		t	750
5	Stroke rate of roller carriage		str./min	20~40
6	Stroke length of roller carriage		mm	1400
7	Length of hollow feed		mm	2~12
8	Rotating angle of hollow during feed		Deg.	45~75
9	Dia. of roller		mm	Φ740
10	PCD of gear driving roller		mm	Φ600、Φ620、Φ40、Φ660
11	Length of connecting rod		mm	4500
12	Radius of crank		mm	700
13	Offset distance between crank and slider		mm	380
14	Center height of hollow		mm	1250
15	Total transmission ratio			13
16	Power of main motor		KW	550
