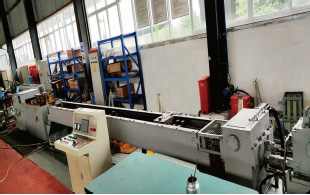

LG-10-H冷轧管机

Technical Data of Tube Cold Rolling Machine Model LG-10-H

No.	Description		Unit	Tube Cold Rolling Machine Model
No.	Description		Unit	LG-10-H
1	Hollow size	0.D.	mm	Φ10~20
		W.T.	mm	1.2~2.5
		Length	m	1~3
2	Tube size	0.D.	mm	Φ6~14
		W.T.	mm	0.8~2
		Length	m	≤5
3	Max.elongation ratio of rolling			Depending on the material
4	Max. nominal rolling force		t	25
5	Stroke rate of roller carriage		str./min	50~120
6	Stroke length of roller carriage		mm	381
7	Length of hollow feed		mm	0.5~5
8	Rotating angle of hollow during feed		度	45~75
9	Dia. of roller		mm	Φ143
10	PCD of gear driving roller		mm	Φ132、Φ135、Φ138
11	Length of connecting rod		mm	1450
12	Radius of crank		mm	190
13	Offset distance between crank and slider		mm	120
14	Center height of hollow		mm	750
15	Total transmission ratio			9
16	Power of main motor		KW	22
